Digital control panels?

When you use a computer interface to control the model layout, what use are control panels?
Well, for testing and 'local control' these panels turned out to be indispensable, so I have built a few of them, spread out over each part of the layout.

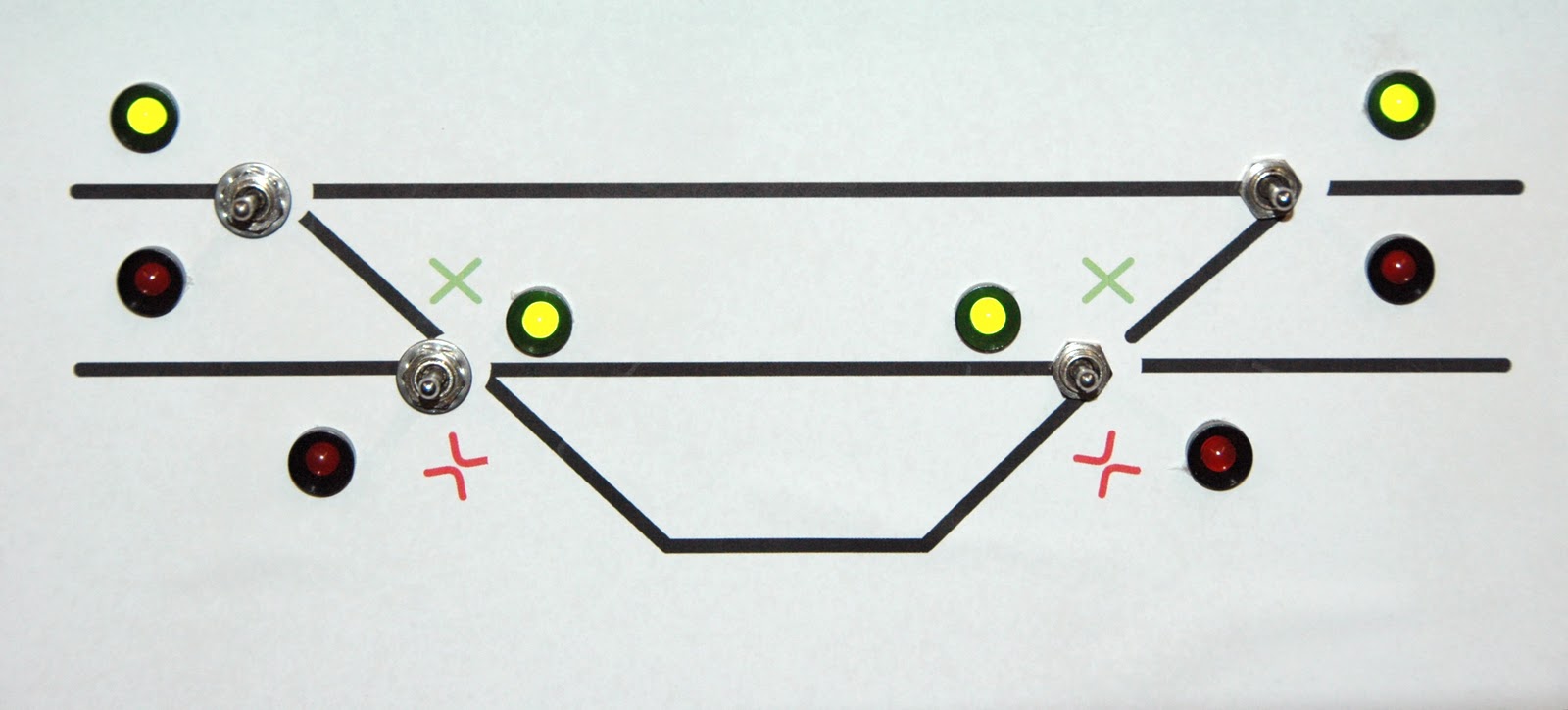

This one I built with the classical toggle switches (on-off-on or sp-dt), and LEDs to show the current position. This is a simple station with one side-track, but with crossover turnouts, so the trains can change to either of the two tracks.

For this I used pushbutton switches with built-in LEDs, this way I only needed one hole for both switch and indicator. The 5 LEDs next to the turnouts are used to denote the position of the signals.

The two switches on the bottom were used to control the light on the station and platform.

ESU Lokpilot DCC V4.0

For some obscure reason, ESU has decided to change the structure of their LokPilot decoders radically, so that it is impossible to program them in any 'upwards-compatible' way. They are using 'indexed' CV's, which means you first program a CV to get to the bank of CVs you need, and the program these. The range of CVs leads to the 300-500 range, so doing this by hand is neigh impossible. IMHO this is a a bit over the top, there was plenty of room in the lower CVs to spare (CV 133-245 are still unused).

I have been watching JMRI's decoderpro pages to see if anyone had been working on a template on this, and I found the following:

- The LokSound V4.0 was included in the 2.12 release
- There was a 'work in progress' file for a LokPilot DCC v4.0 decoder

Using this, I got the decoder working, but there were still issues.
